    Clixx magnetic track system

    CLIXX 39MM — For professional applications with high requirements.

    The CLIXX 39MM 24V magnetic track lighting system offers powerful light modules for professional applications where high light output is required. Ideal for retail and office applications and spaces with high ceilings in general. A continuous line providing lasting flexibility in positioning of light to ever changing spaces. A safe and energy saving low voltage system with high performance. Easy tool-free installation due to magnetic installation of the LED light modules. The track profile measures 39mm in width and 79mm in height.

    Configure your clixx system

    1  —  Mounting type

    The CLIXX Magnetic track lighting system offers 4 installation options: Surface tracks for surface mounted installation or recessed installation in non-plaster ceilings by using the recessed kit. Recessed trimless tracks for seamless recessed installation in plaster walls and ceilings. Pendant tracks for suspended installation on any ceiling surface. Mechanical / electrical connectors and mounting hardware is included with the tracks.

    2  —  Define the shape

    The CLIXX Magnetic track lighting system can adapt to any interior and moves effortlessly through any space. Various corner connections make it possible to realize different shapes in addition to a straight line. Think of U-shapes, L-shapes, T-Shapes and much more. The possibilities are only limited by your own imagination. The track profiles are available in lengths of 1 and 2 meters (39.37 and 78.74 inches) in various colors. Tracks can easily be connected to each other to achieve longer lengths or cut to the exact desired size. Design your shape and choose the necessary components.

    Surface tracks and corners

    Recessed tracks and corners

    Pendant tracks and corners

    3  —  Driver

    The driver converts the mains voltage to 24V. The max wattage of driver determines the number of light modules. Add up the wattages of the chosen light modules and make sure that they remain under 80% of drivers max capacity. There are 3 ways to apply the driver:

    1. Remote driver: Install the transformer externally, for example in a central circuit box or cabinet. Please note that the driver should always be accessible in case it needs to be replaced.

    2. Track driver box: The track driver box is a piece of track in which the driver is incorporated. Simply connect the driver box to the mains voltage and all connected tracks are supplied with 24V. Available for start/end of the track or in the middle.

    3. Ceiling driver box: Ceiling driver box for suspended installation.

    Accessories

    View installation manual

    4  —  Controlling light

    The CLIXX magnetic track lighting system offers multiple control options. Control the complete track with Triac trailing edge or 1-10V dimming, where all light modules react in sync by using a conventional LED wall dimmer or home automation system. Individual programming of light modules is supported through DALI and Zigbee. Create scenes, group modules, set timers etc. Triac and Zigbee do not require any rewiring and can be used in existing installations.


    An all-in-one lighting solution for even the most creative architects, interior designers and lighting designers.

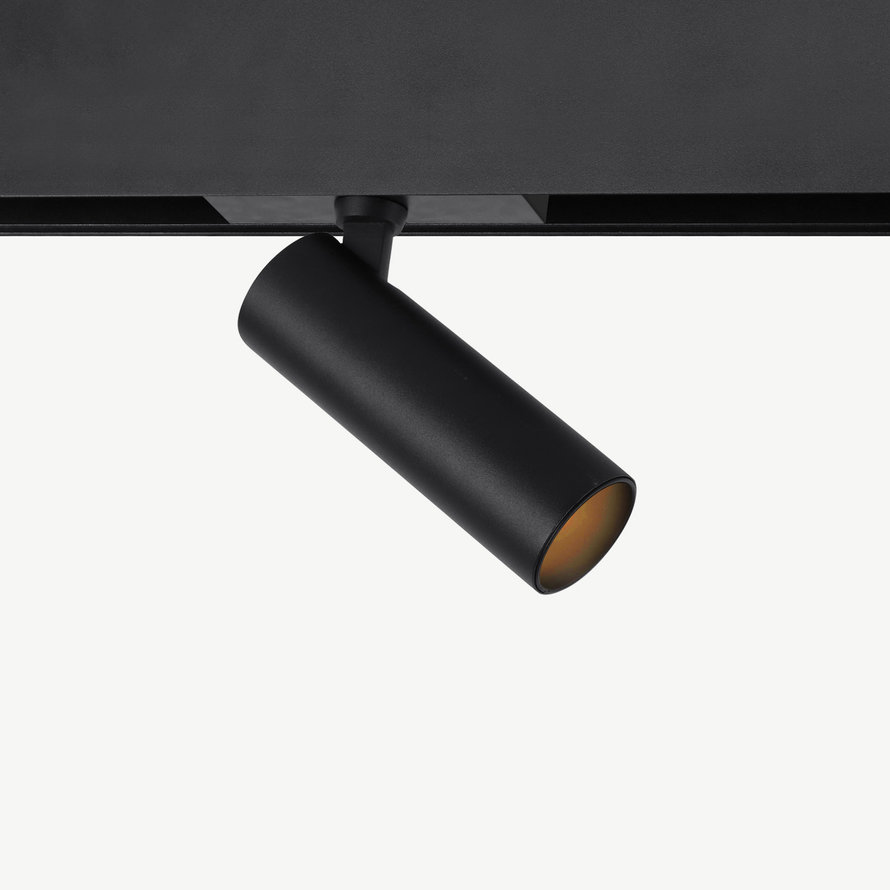

    5  —  Choose your light modules

    Each CLIXX magnetic light module is equipped with a high-quality integrated LED light source with unique light distribution. Light modules can be added, moved and removed, allowing the system to easily adapt to any changes in the space.

    Different light modules offer the perfect light for every application. Linear light modules with high light output for general lighting and spot modules with focused light for accent lighting make the CLIXX system an all-in-one lighting solution. Each light module contains permanent magnets for easy tool-free installation. When connected to the tracks the light modules function instantly.

    All light modules
