CLIXX SLIM — A minimalist profile with maximum presence in living spaces.

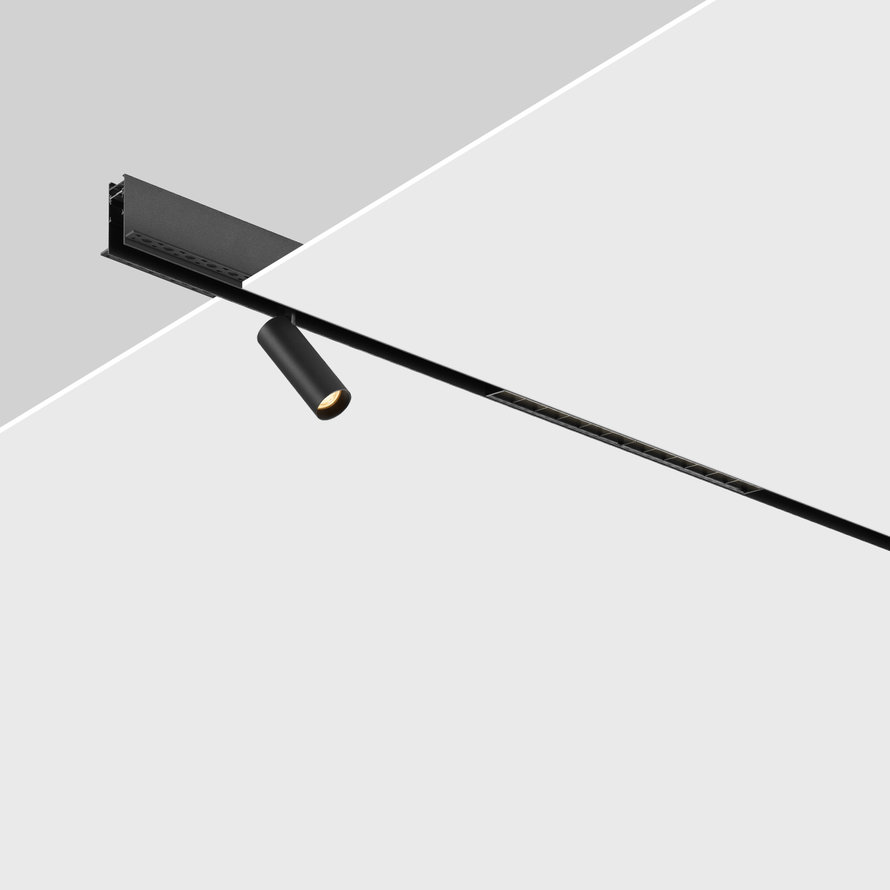

The CLIXX SLIM 24V magnetic track lighting system is specifically designed for residential houses. The slim profile offers elegance and sophistication without compromising on performance. Ideal for living rooms, kitchens, entrances, hallways and other spaces. Always the perfect light through different light modules within a single profile from one light point. A continuous line providing lasting flexibility in positioning of light. A safe and energy saving low voltage system with high performance. Easy tool-free installation due to magnetic installation of the LED light modules. The track profile measures 27mm in width and 58mm in height.

CLIXX brochure

Configure CLIXX

3  —  Driver

The driver converts the mains voltage to 24V. The max wattage of driver determines the number of light modules. Add up the wattages of the chosen light modules and make sure that they remain under 80% of drivers max capacity. There are 3 ways to apply the driver:

1. Remote driver: Install the transformer externally, for example in a central circuit box or cabinet. Please note that the driver should always be accessible in case it needs to be replaced.

2. Track driver box: The track driver box is a piece of track in which the driver is incorporated. Simply connect the driver box to the mains voltage and all connected tracks are supplied with 24V. Available for start/end of the track or in the middle.

3. Ceiling driver box: Ceiling driver box for suspended installation.

Accessories

View installation manual

4  —  Controlling light

The CLIXX magnetic track lighting system offers multiple control options. Control the complete track with Triac trailing edge or 1-10V dimming, where all light modules react in sync by using a conventional LED wall dimmer or home automation system. Individual programming of light modules is supported through DALI and Zigbee. Create scenes, group modules, set timers etc. Triac and Zigbee do not require any rewiring and can be used in existing installations.

5  —  Choose your light modules

Each CLIXX magnetic light module is equipped with a high-quality integrated LED light source with unique light distribution. Light modules can be added, moved and removed, allowing the system to easily adapt to any changes in the space.

Different light modules offer the perfect light for every application. Linear light modules with high light output for general lighting and spot modules with focused light for accent lighting make the CLIXX system an all-in-one lighting solution. Each light module contains permanent magnets for easy tool-free installation. When connected to the tracks the light modules function instantly.

All light modules
