    CLIXX 24V magnetic track light system

    Clixx magnetic track system installation instructions
    Installation instructions (pdf)

    Profile
    The CLIXX 24V magnetic track light system consists of compact profiles in which the magnetic LED LED modules are placed. The CLIXX system consists of recessed and surface-mounted profiles for ceiling and wall. The surface-mounted profiles can also be suspended using the suspension system. The profiles are available in lengths of 1 and 2 meters but can be shortened to create the exact desired length. The CLIXX profile is 76mm high and 39mm wide, or for a minimalist look, choose the CLIXX Slim profile of 58mm high and 27mm wide. Multiple profiles can be easily attached to each other for an uninterrupted line through space. Different corner profiles support even the most creative designs, giving the CLIXX system the ultimate flexibility for any lighting design.

    LED modules
    The CLIXX magnetic LED LED modules are magnetically connected to the profiles, making them easy to position and move while the power is on. Installation of the LED modules is therefore no more than a simple "click". Each CLIXX magnetic LED module is equipped with a high-quality integrated LED light source with unique light distribution. Different LED modules provide the perfect light for every specific application. Linear modules with high lumen output and diffuse light for general lighting and spot modules with focused bright light for accent lighting make the CLIXX system an all-in-one solution.

    Intelligent
    The CLIXX magnetic rail system offers the possibility to adjust color temperature and brightness. The LED modules are standard equipped with warm neutral light with a color temperature of 3000K. Also available on request in 2700K (very hot), 4000K - 5000K (cool). The CLIXX system is standard TRIAC dimmable (phase-cut), therefore it can be controlled with an LED wall dimmer without the need for additional control wires. The 1-10V option is offered for home automation solutions. With these options, the entire rail is dimmed.

    To enable control of individual LED modules or to group LED modules, you can choose the option DALI dimmable. 2 additional control wires are required for both DALI and 1-10V.

    TRIAC dimmable (trailing edge)

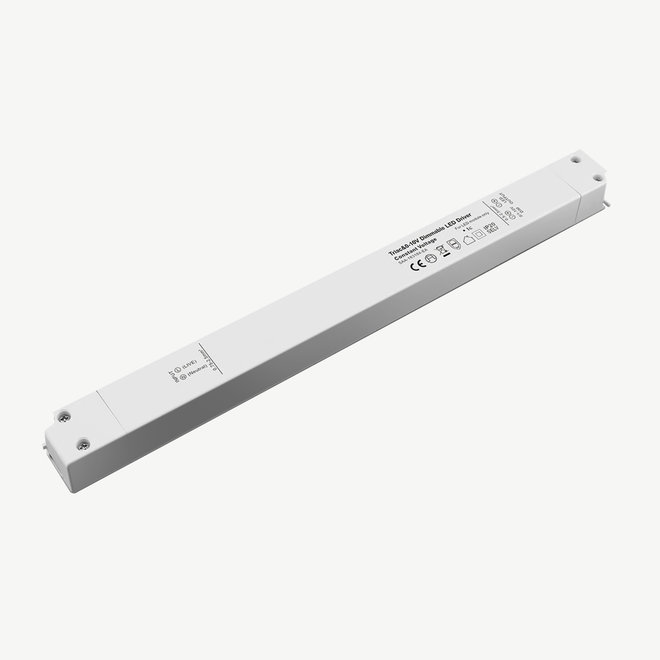

    Perhaps the best-known form of LED dimming, where the lamp can be easily operated with an LED wall dimmer. With a dimming range of 100% you can dim the lamp until it is completely off. The driver is exchanged with a dimmable driver. No additional control wires are required for TRIAC dimming (trailing edge).

    DALI
    With DALI you have full control over the light. DALI makes it possible to set each lamp individually or to assign it to a group. With DALI you can create different light scenes in every room which are stored. An optional motion sensor and dimmer help to significantly reduce energy consumption. This makes DALI particularly suitable for objects such as offices, shops, restaurants or hotels. 2 extra control wires are required to connect DALI.

    1-10V
    The LED driver is controlled by an external signal between 1 and 10V. Perfectly dimmable in a range from 10% to 100%. Applicable with many home automation systems. It is necessary to place a 1-10V actuator between the home automation system and the fixture. Two extra control wires are needed to connect 1-10V.
